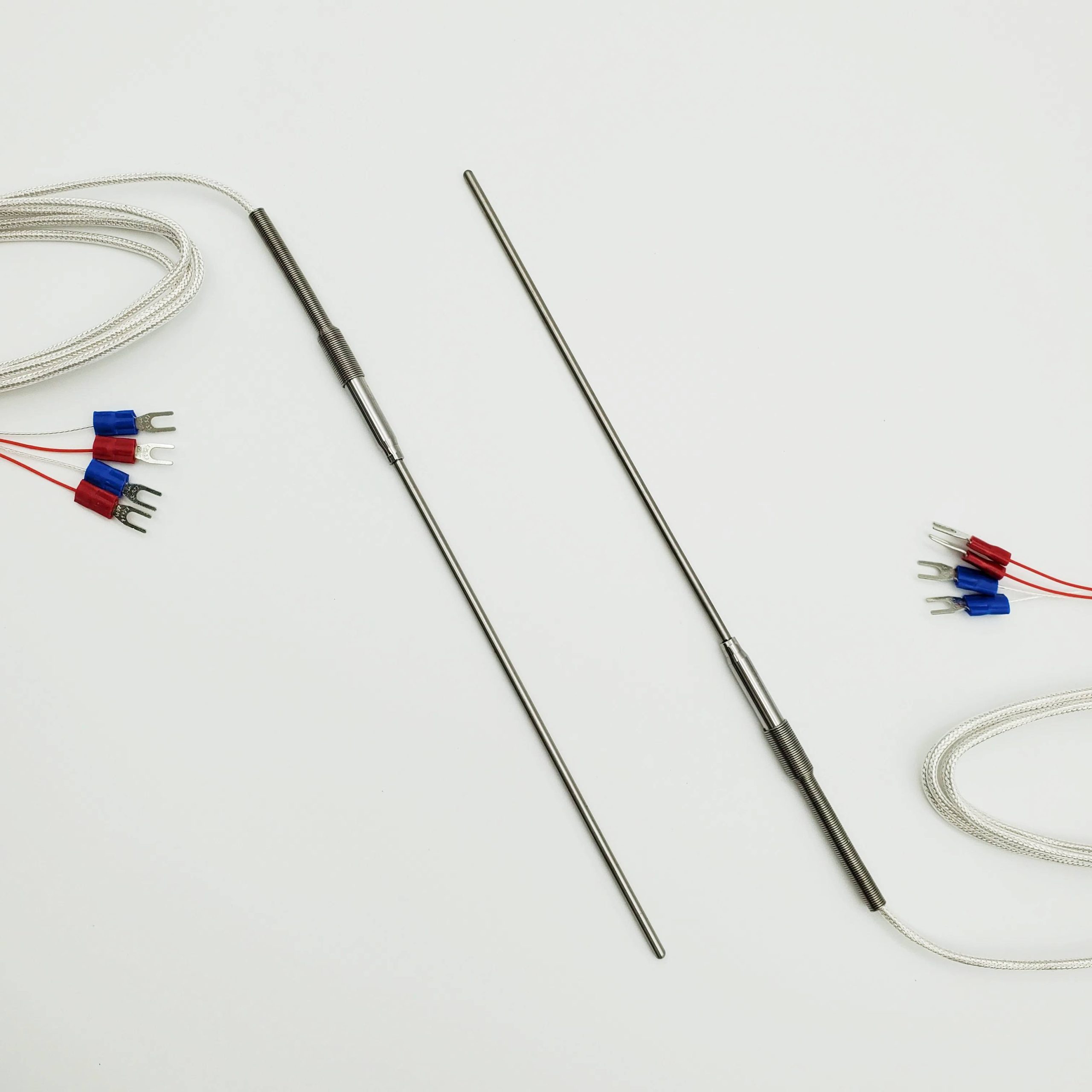

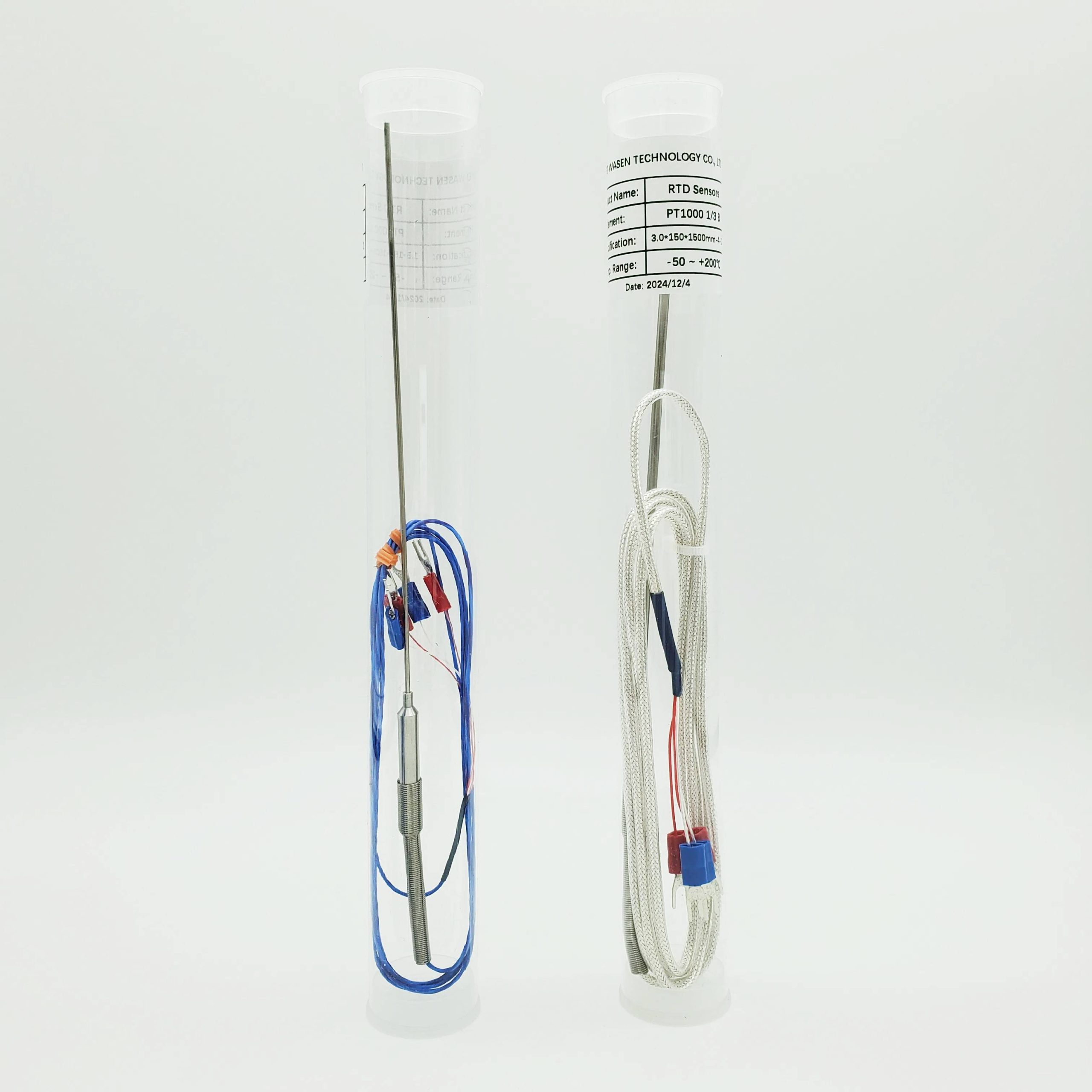

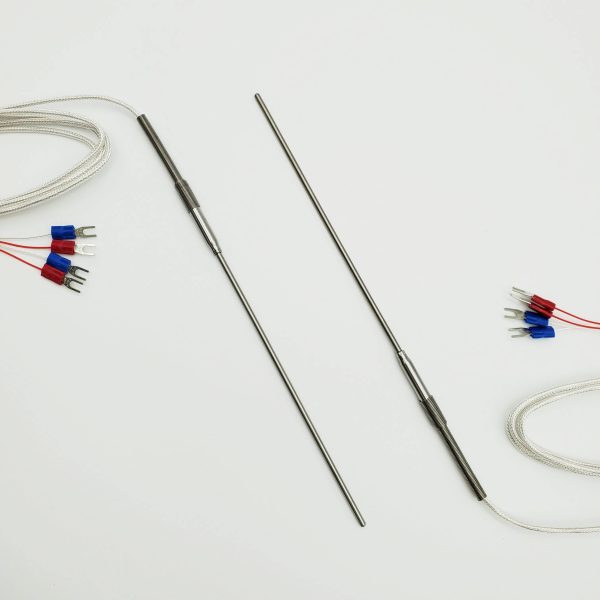

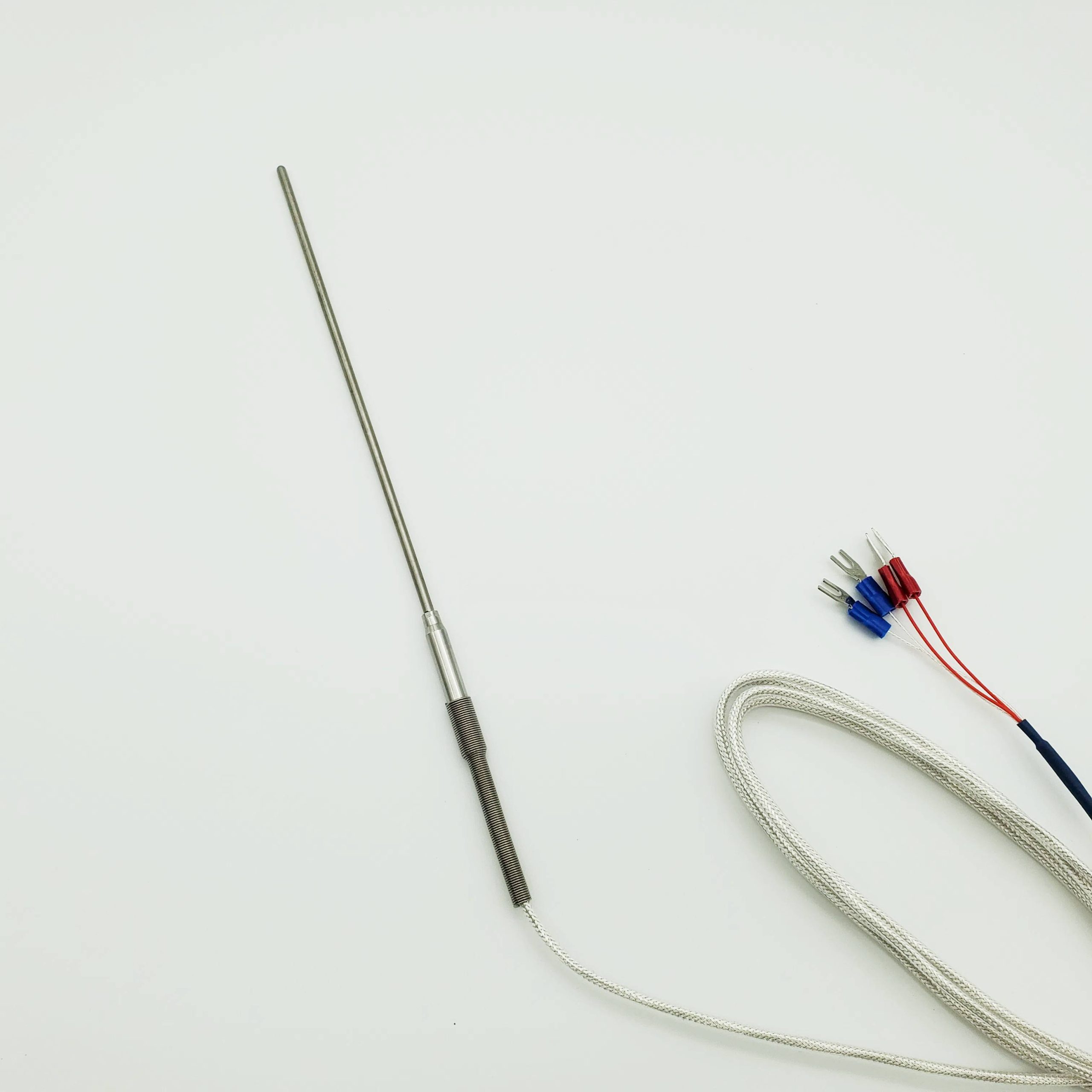

1/8 inch 3.0mm ultra-fine PT1000 sensor 150mm probe length

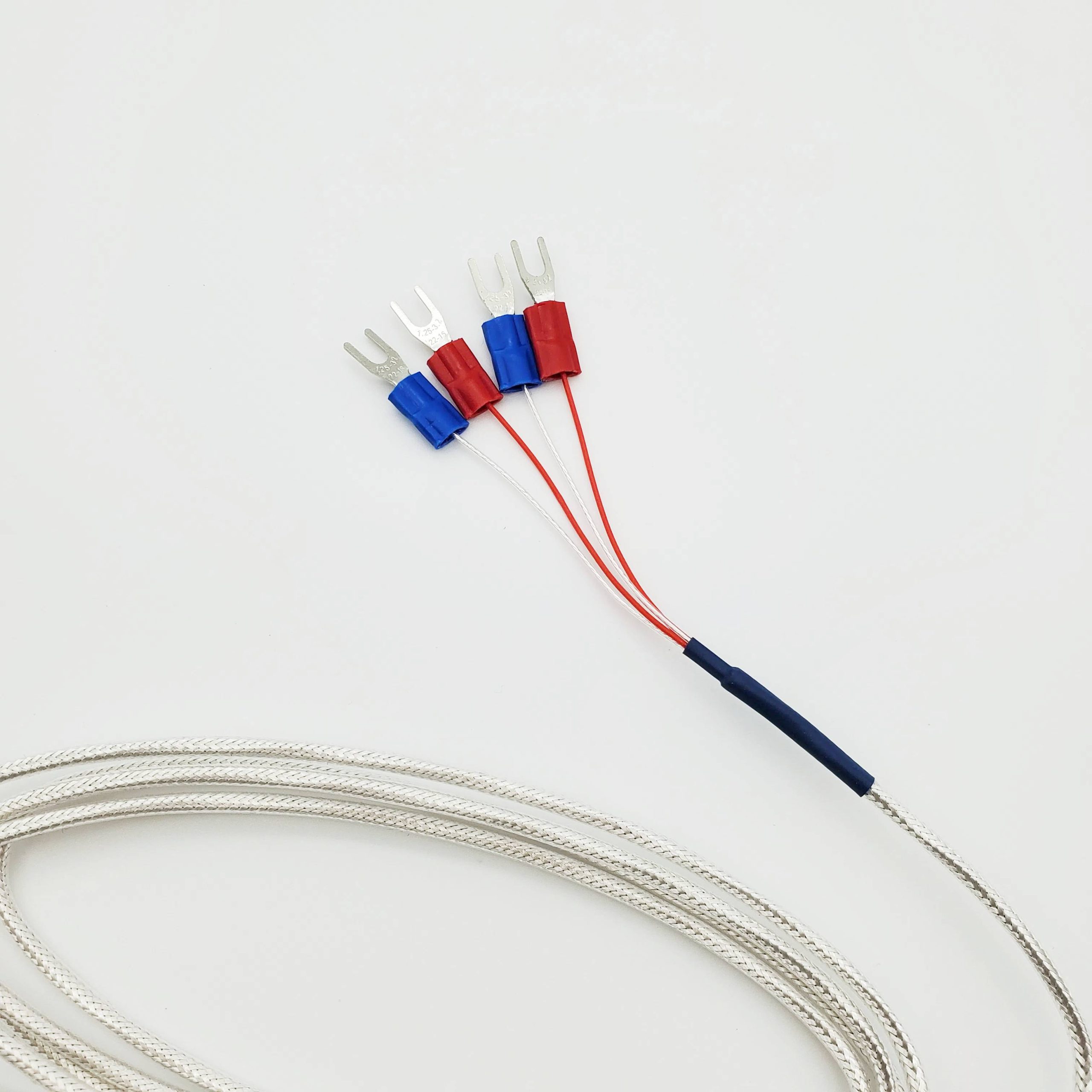

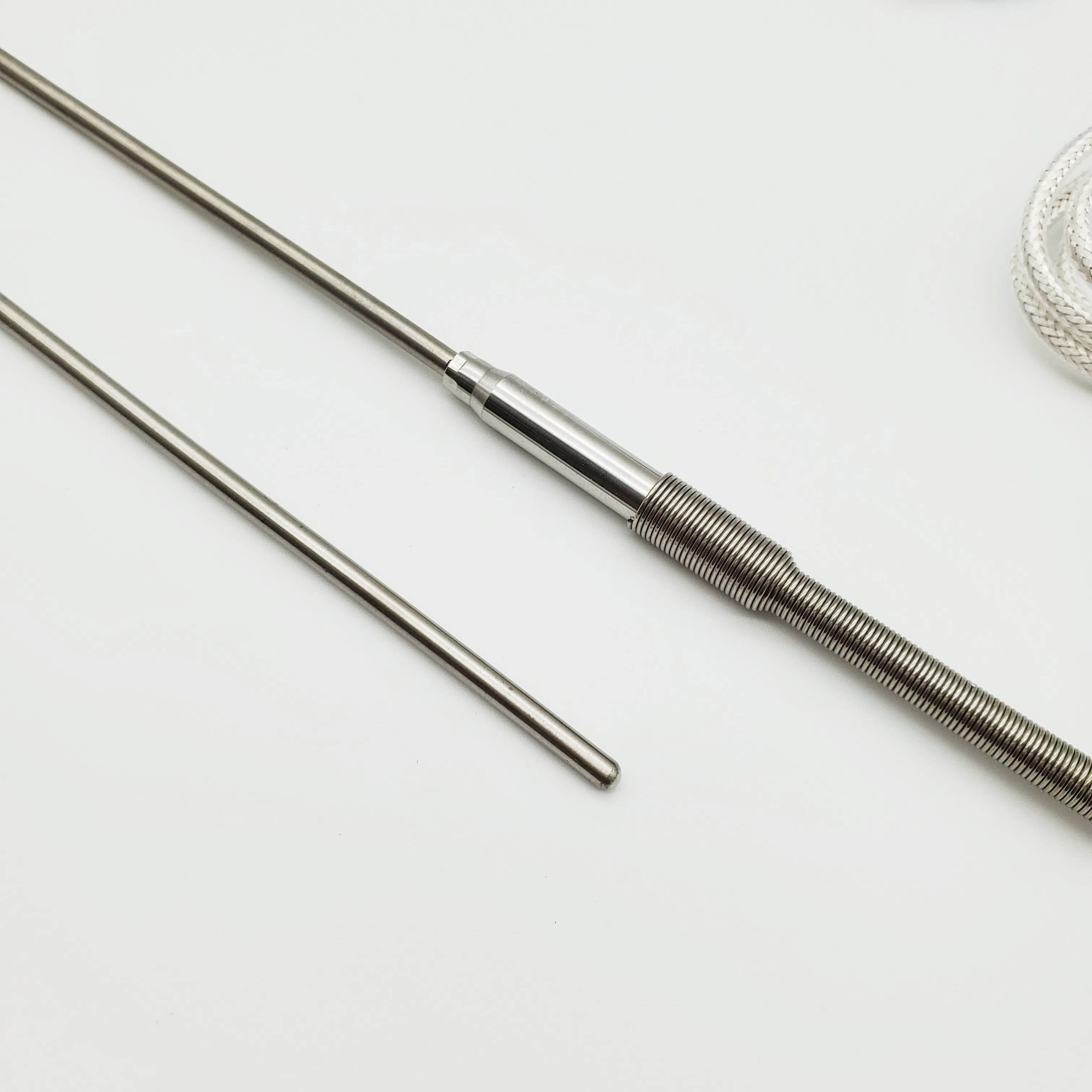

Ultra-fine RTD temperature sensor-PT100/PT1000 class A. Featuring a 3.0mm (1/8″) diameter probe and a standard length of 150 mm, this high-precision sensor comes with a 1.5 meter fiberglass-insulated cable (custom lengths available). Choose between 3-wire or 4-wire configurations to suit your application. Designed for a temperature range of -50 °C to +200 °C.
Typical Applications
- Air ducts
- Bearing temperature
- Oil temperature indicator
- Soldering equipment
- Ovens
- Environmental test chambers
- Pharmaceutical refrigerator and freezer
- Food processing
- Plastic molding
- Petroleum & chemical processing
- Electric generating plants
Overview
RTD (Resistance Temperature Detector) temperature sensor, including PT100, PT1000 with high accuracy, good resolution, safe and reliable, convenient use, can be directly measured during the manufacturer of all kinds of liquid, vapour and gas medium temperature.
Resistance: PT10/ PT20/ PT100/ PT200/ PT500/ PT1000
Accuracy: Class AA (±0.10ºC), Class A (±0.15ºC), Class B (±0.30ºC), Class C (±0.60ºC).
Key Parameters
| Item | Specification |
|---|---|
|
Sensing Element |
PT10 / PT20 / PT100 / PT200 / PT500 / PT1000 |
|
Measurement Range |
-200℃ ~ +800℃ (Can be customized on request) |
|
Accuracy |
Class AA, Class A, Class B, Class BB |
|
Time Constant |
≤ 30 sec. (in air)
|
|
Dissipation Factor |
Approx. 6 mW/ºC (in air) |
|
Tube Material |
SUS / Copper / Plastic / TPE / Epoxy resin |
|
Wire |
24AWG / 26AWG / Double line wire / Silicon round jacket / PTFE / Fiberglass |
Customizable Parts
Part A:Sensing Element
| Item | Specification |
|---|---|
| Thermistor | NTC, PTC |
| RTD series | PT10, PT20, PT100, PT200, PT500, PT1000 |
| Digital series | DS18B20, STS35, TMP117 etc. |
| Analog series | LM35 |
Part B:Head Type
Tubular SS 304
Medical Type Round Body
Bullet Tube
TPE Sheath
Mounted O Ring
Brass Tube
Flange Tube
Threaded Tube
Part C:Wire
| Item | Specification |
|---|---|
| American wire gauge | 18, 20, 22, 24, 28 etc. |
| Material | PVC, Silicone, Fiberglass |
| Outer diameter | 2.5mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm |
Part D:Terminal
JST SM Connector
M8 6 Pins Male
Connector
Plastic Connector
Crimp Cable End
Before You Send Inquiry
Your messages will be responded within 12 hours.
To precisely address your needs, we require comprehensive information including quantity, electrical specifications, dimensional requirements, operating temperature range, and other pertinent details tailored to your specific working conditions.
Normally it takes 3-4 weeks for us to finish production. If you have any special lead time requirements, please contact our customer service team.
